Doors

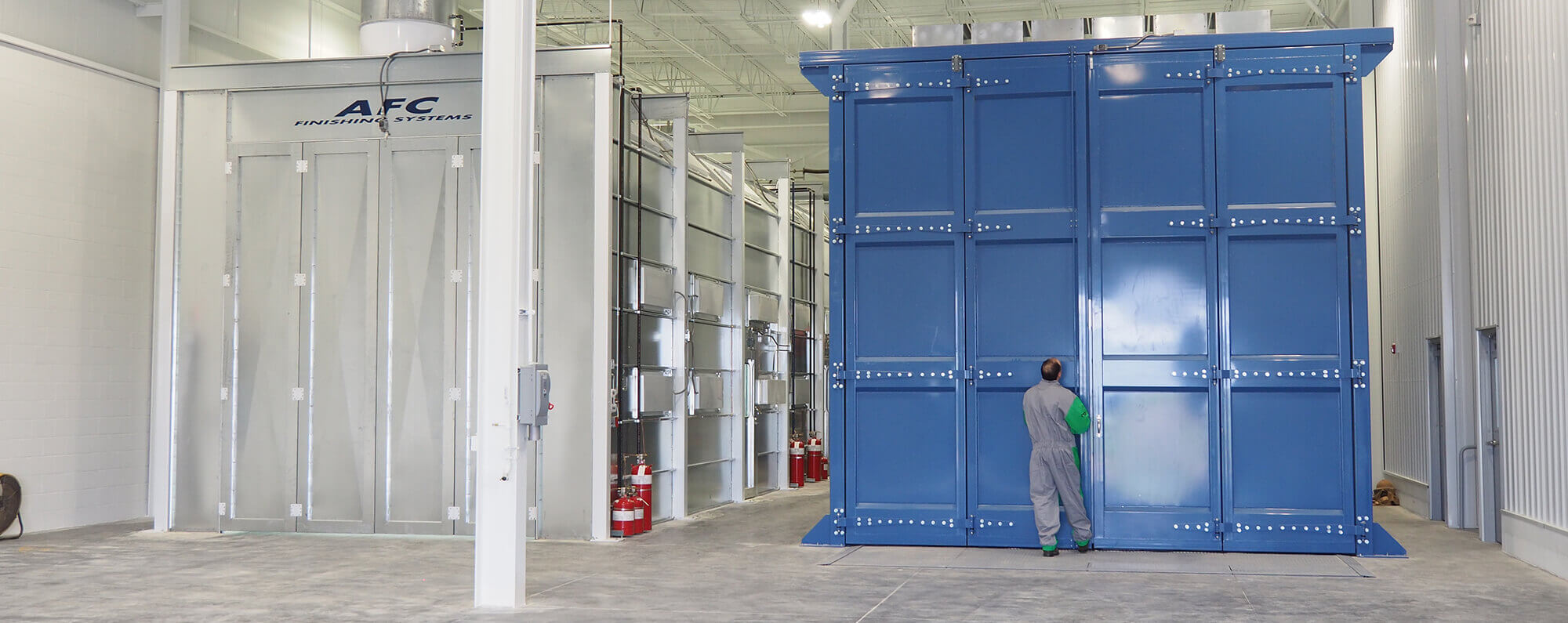

AFC Finishing Systems manufactures doors in a range of sizes for a wide variety of enclosures.

QUADRAFT STYLE DOORS

Quadraft Style Doors

These are designed to provide doors that are effective in sealing the opening while at the same time making an attractive and functional appearance. Four large windows provide for viewing and monitoring the operations inside the spray booth. The bi-fold feature requires less clearance in front of the booth and is used as an entry door to the booth. Large,heavy-duty chrome plated hinges provide support for the doors. An exclusive pressure-type locking device using ball bearing rollers assures a complete seal around the doors. The quadraft style doors are fabricated of 18 gauge galvanized steel with optional powder coating finish. Double bi-fold quadraft style doors are also available as an upgrade option.

Filter Doors

The FILTER DOORS enable the operator to completely seal the working area against dirt and contamination during the spraying operation. Filter doors are fabricated of 18 gauge galvanized sheet steel with welded box-type construction to eliminate torsion. The use of three or more hinges on each door assures positive gasket compression at the door jamb. Each door is fitted with High Velocity Custom Tacky blanket filters to allow dust-free air into the booth. An exclusive pressure-type locking device using ball bearing rollers assures a complete seal around the doors. The threshold is a removable tie bar unit that seals the doors from inside the booth, eliminating any need for rubber flaps.

Filter Doors
Model NumberDoor Frame OutsideClear Door Opening
WidthHeightWidthHeight
Auto FD10910'0"9'0"9'9"8'10"
Auto/Truck FD101010'0"10'6"9'9"10'4"
Truck FD101410'0"14'0"9'9"13'10"
Standard drive-in doors

Standard Doors

Standard drive-in doors like the one shown here and others of custom sizes are available. Please consult Factory.
